FM Sender 0-7W

Description

OBS! VIKTIG!
Du må ha konsesjon og brukstillatelse for bruk av FM sendere i Norge.
Dette får du ved å kontakte NKOM og Medietilsynet.
Du må ha firma og tilgang til altinn om du skal søke.
Vil du ikke gjøre jobben selv? Ta kontakt med oss.

Features:

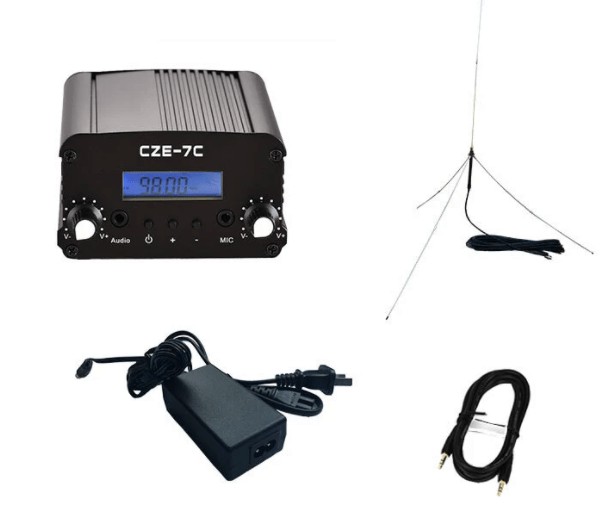

The NKTECH CZE-7C FM stereo transmitter can be used for factories, schools, supermarkets, farms, Office space or create your own radio station.
Designed with advanced modulation system and built-in PLL frequency, audio pre-emphasis, limiter, and low-pass filter circuit.
Switching frequency: Can arbitrarily set from 76MHz to 110MHz range from 86MHz to 90MHz 95MHz to 108MHz, 87MHz to 108MHz.
Switching power: 1W and 7W power can be switched to use.
The Control circuit board design and amplifier design to reduce noise, so sound quality is even better.
Well-shielded, compact structure, small size, generous appearance, plug and play, very easy to use.

Technical Specifications:
FM Transmitter Frequencies: 87-108Mhz.
Tuning Step: 100Khz/0.1Mhz.
Power Supply: 12V DC (The current load of power supply should over 2A).
Stability of Frequency: +-0ppm (-10 to +50).
Frequency Response: 76-108Mhz.
Signal to Noise Ratio: >70dB.
Distortion: < 0.5%.
Operation Time: True 24/7.
Antenna Design: Metal telescoping antenna.
Antenna Connector: BNC Type.
Output Impedance: 50 ohm.
RF output power: 1W/7W (Power can be switched).
Audio Input Connector: 3.5mm.
Mic Input Connector: 3.5mm.
Tuning Design: Stable PLL Technology.
Antenna type: Metal TNC telescopic antenna IS-01.
Transmission Signal: FM Stereo.
Size: 160mm x 95mm x 54mm.
