Description

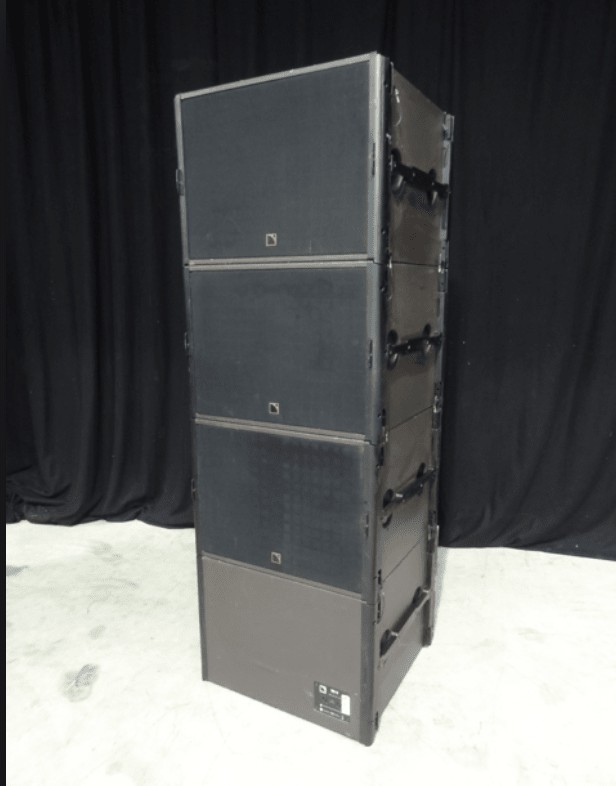

High Power compact subwoofer
- 32 Hz LF limit, high power handling, low distortion and thermal compression
- Progressive vent for increased peak SPL, and minimal turbulence noise
- DSP presets for cardioid mode (symmetrical and asymmetrical)
- Pole mount for XT series, ARCS® WIDE/FOCUS and KIVA
- Compatible rigging : SB18(i)/KARA®(i), SB18m/ARCS® WIDE – FOCUS
Download center
Low frequency limit
(-10dB) |
- 32 Hz ([SB18_100] preset)
|
| Maximum SPL |
- 136 dB ([SB18_100] preset)
|
| Long term RMS handling capacity |
|
| Components |
- LF: 1 x 18’’ weather-resistant, (4’’ coil, aluminium die-cast basket, vented magnet design)
- Nominal impedance: 8 ohms
|
| Rigging |
- Steel, certified for: 16 SB18
|
| Physical data |
- W x H/h x D: 750 x 540 x 707 mm – 29.5 x 21.3 x 27.8 in
- Weight (net): 52 kg 114.5 lbs
- Connectors: 2 x 4-point Speakon®
- Material: baltic birch plywood
- Finish: Grey-brown, RAL 8019®
- Front: polyester powder-coated steel grill, Airnet® acoustically neutral fabric
- Rigging: pole-mount socket, integrated rigging for flying, stacking runners (steel with dual coating zinc and polyester powder)
|
| Drawings |
 |
